A headstock veneer transforms the look of a guitar, covering end grain or a scarf joint behind a layer of figured maple, ebony, rosewood or other decorative wood. The process is straightforward — glue a thin sheet to the headstock face, trim to shape and finish — but getting a clean result requires attention to a few key details.
Choosing your veneer

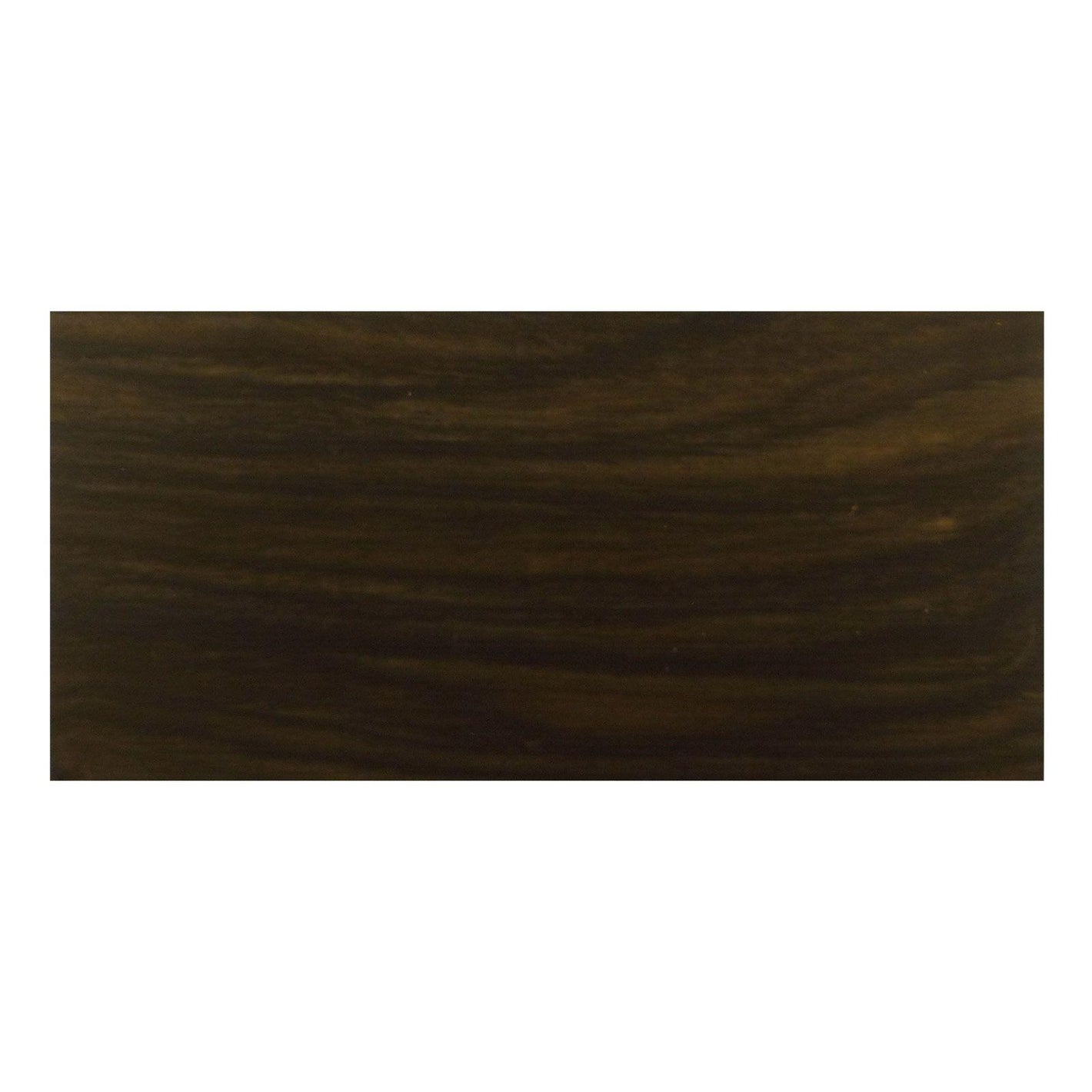

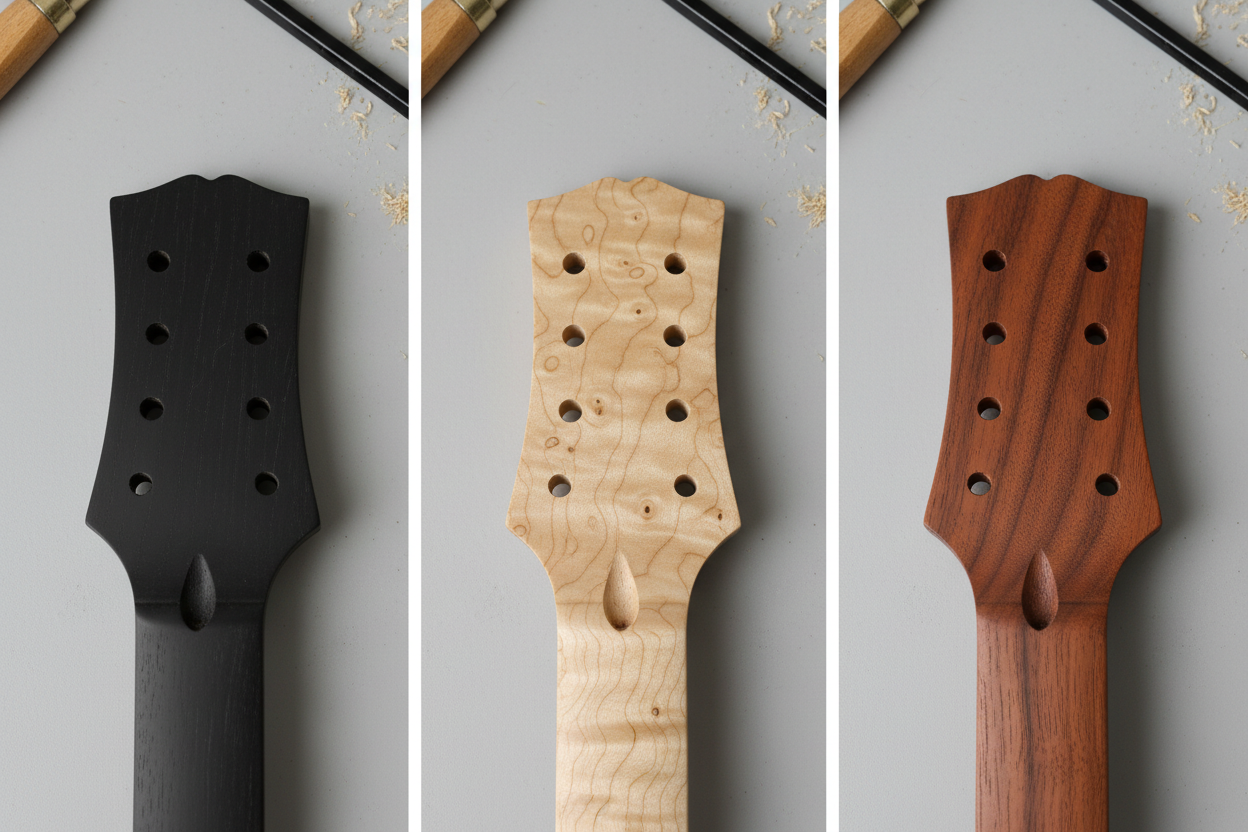

Headstock veneers are typically 0.6-1.0mm thick. Ebony is the classic choice for Gibson-style guitars, while figured maple works beautifully on Fender-style headstocks. Rosewood, koa and walnut are popular alternatives. The veneer should be cut oversize — at least 10mm larger than the headstock outline in every direction — so you have material to trim flush after gluing.
Surface preparation
Both surfaces must be flat and clean. If the headstock face has any lacquer, sealer or old adhesive residue, sand it back to bare wood with 120-grit paper. The veneer back should be lightly scuffed with 180-grit to give the glue a good key. Check both surfaces against a straight edge — any hollow or high spot will telegraph through a thin veneer and show as a gap or a bump in the finished piece.
Gluing and clamping
Apply a thin, even coat of PVA wood glue to both the headstock face and the back of the veneer. Position the veneer carefully, leaving even overhang on all sides. Place a flat caul (a piece of MDF or plywood cut larger than the headstock) over the veneer, with a sheet of wax paper between caul and veneer to prevent any squeeze-out bonding the caul to your work. Clamp firmly with at least three clamps spaced evenly across the headstock. Check that the veneer has not shifted under clamping pressure before walking away.
Clean any squeeze-out immediately with a damp cloth — dried PVA under the veneer edge will show as a white line in the finished piece. Leave clamped overnight.
CA adhesive is the faster alternative. Apply medium CA to the headstock face, position the veneer and press down firmly for 30 seconds. There is no repositioning time with CA — once it grabs, the veneer is fixed — so make sure your alignment is right before making contact.
Trimming
Once cured, trim the veneer flush with the headstock outline. A flush-trim router bit with a bearing guide is the cleanest method — set the bearing to ride against the headstock edge and trim the overhang in a single pass. Go slowly around curves and at the nut end where grain direction changes. Alternatively, score along the headstock edge with a sharp craft knife, snap the waste away, and finish with a flat file.
Drill the tuner holes through the veneer from the front face, using the existing holes in the headstock as guides from the back. A sharp brad-point bit at moderate speed prevents the veneer from chipping around the holes. Sand the entire veneer surface to 320 grit and it is ready for finishing.
